Panel Mounted Plug

FOB Reference Price:Get Latest Price
  • >=100 Pieces
    $100.00
Lead Time:
Quantity(Pieces) 1 - 100 101 - 1000 >1000
Est. Time(days) 10 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
NADWAY
Model Number:
DTQX3
Type:
Electrical Plug
Grounding:
Standard Grounding
Rated Voltage:
110V, 230V, 400V, 500V
Rated Current:
16A
Application:
Industrial
Product name:
Industrial Plug
Protection Degree:
IP44 / IP67
Standard:
CEE/ICE/SAA
Supply Ability
Supply Ability:
20000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Standard Export Package
Port
ningbo,shanghai
Lead Time :
Quantity(Pieces) 1 - 100 101 - 1000 >1000
Est. Time(days) 10 15 To be negotiated

product model







Product details





CurrentPoles110V
50a.60Hz
230V
50a.60Hz
400V
50a.60Hz
500V
50a.60Hz
>50-500
100-300Hz
>50-500
a.300-500Hz
Packing unitWeight
3Poles
4h
 4Poles
 4h
5Poles
4h
3Poles
6h
 4Poles
 9h
5Poles
9h
3Poles
9h
 4Poles
 6h
5Poles
6h
3Poles
7h
 4Poles
 7h
5Poles
7h
3Poles
10h
4Poles
10h
5Poles
10h
3Poles
2h
 4Poles
 2h
5Poles
2h
165   QX3   10173



Earth Contact Position 6h
 Rated Current(A) 16
 Poles 5

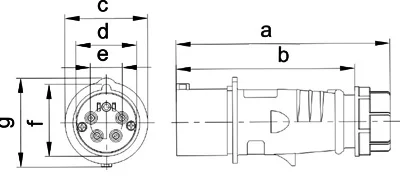

 Dimension(mm)

 a
 b
 c
 d
 e
 f
 g
 144
 121
 56
 50
 26.5
 60
 75
 Cable nominal cross-sectional area(mm2)1.5-2.5







Product description





These plugs are IP66 rated when fitted to a 56 series cord connector or socket outlet. The body section is transparent for quick and easy inspection of the terminals and cable entry. Plugs are available with 4 to 7 pins, 16A to 63A to cover most applicatons.



   1.CEE/IEC international standard ;

   2.Good space stability and accuracy ;

   3.Good resistance to acid and alkali ;

   4.Resistance to severe weather and ageing ;

   5.Effectively precent power outages and leakage ;

   6.Economic, Functional, Standard plug, Wide application;

   7.Provice different series products for different environment;



Product inspection



TESTING AND QUALITY CONTROL:
  Our product have pass lots type of test, whatever in TEMPERATURE-RISE TEST, CTI/PTI TEST, GLOW WIRE TEST, INSPERTION AND EXTRACTION FORCE TEST, SAND AND UST TEST and the other test, our product performance are over the standards and other brands’ product.




Temperature-Rist Test:
When we design the product, the first thing we need to do is make sure that our product can  work in tated current for a long time. To keep the high quality, we use the experimental apparatus which can test the temperture-risk, product life, and mechanical property together for finsh the test more fast and widely.

CTI/PTI Test:
  When we were designing the product, we not only need to considering the metal part, but also for the plasic part. CTI/PTI is a very improtant test for testing the plastic. We only chose the raw material which can pass the CTI/PTI test to keep our product have high insulativity and safety.

Sand Dust Test:
  The operational environment is the first problem we considered when we design the product. We need to make sure that our product can be used over the world. So we need to evaluate the flexible condition of environment for store, deliver, and use in dry-sands or abound with lots of dusts.
  The sand dust test adopted the manual simulation of  sand & dust conditions. So we can ensure that whether they had long-term usage in al kinds of harsh natural environments

Rainfall Test:
As we know, whatever the product , product can inordinately influence with all kinds of liquids, whatever they in operative or storage. It has varying effects on their raw materials and features and even can damage the structures when they are permeated.
Rainfall test can exam the product outside case’s stabilities and reliabilities of against the liquid.

Insertion and Extraction Force Test:
We need to make sure the variable temperature at first when we design the product. Base on the variable temperature, we try to do the best feeling of inspection and extraction force.
  The target of insection and extraction force test is translate the nastic feeling to the exactly data, base on the data, we can provide the information for design, improve, and inspect the product.









High And Low Temperature Test:
  There are many type of nature environment and precipitating environment in the world, and hundreds of environment factor can effect the life of electrical equipment, especially for the temperature.
In the high temperature or low temperature condition, we can exam the product physical performance by the simulation. After the exam, we can judge the how is the performance of product by inspection.

Glow Wire Test:
  Decrease the risk of risk fire disaster is necessary. The electrical equipment case more and more fire disaster in the modern life. The component of electrical equipment may be fire because overload or bad contact.
  The glow wire test is use the simulation to know the risk of fire when the component is overload or glow in short time.


Application





Provide different series products for different environment
Resistance to bad weather and ageing
Good space stability and accuracy
Good resistance to acid and alkali
Effectively prevent power outages and leakage
